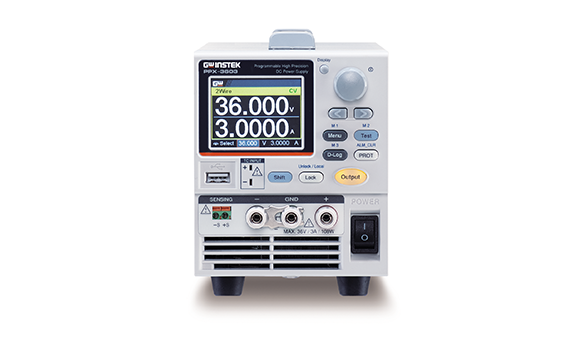

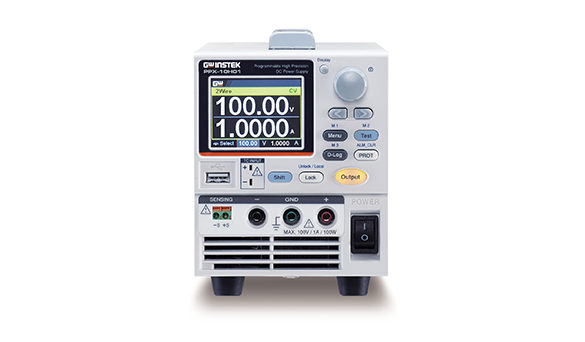

PPX系列PPX-3601,PPX-1005,PPX-2002,PPX-2005,PPX-3603,PPX-10H01可編程高精度直流電源供應器產品詳細規格
| 型號 | PPX-1005 | PPX-2002 | PPX-2005 | PPX-3601 | PPX-3603 | PPX-10H01 | ||
| 直流輸出 | ||||||||
| 輸出電壓 | 10.000V | 20.000V | 20.000V | 36.000V | 36.000V | 100.00V | ||
| 輸出電流 | 5.0000A | 2.0000A | 5.0000A | 1.0000A | 3.0000A | 1.0000A | ||
| 輸出功率 | 50W | 40W | 100W | 36W | 108W | 100W | ||
| 定電壓操作 | ||||||||
| 電源調節率 | ±(0.01% of setting + 1mV) | ±(0.01% of setting + 1mV) | ±(0.01% of setting + 1mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 7mV) | ||
| 負載調節率 | ±(0.01% of setting + 2mV) | ±(0.01% of setting + 2mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 3mV) | ±(0.01% of setting + 4mV) | ±(0.01% of setting + 7mV) | ||
| 瞬間恢復時間 *1 | <50us | <100us | ||||||
| 紋波&噪聲 | (Vrms*2/ Vpp*3) | 0.35mVrms/<6mV Vpp | 0.5mVrms/<8mV Vpp | 0.5mVrms/<8mV Vpp | 0.8mVrms/<10mV Vpp | 0.8mVrms/<10mV Vpp | 1.2mVrms/<15mV Vpp | |
| 上升時間*4 | Rated load | 20ms | 50ms | 100ms | ||||
| No load | 20ms | 50ms | 100ms | |||||
| 下降時間*5 | Rated load | 10ms | 20ms | 50ms | ||||
| No load | 100ms | 150ms | 250ms | |||||
| 設定范圍 (105%) | 0V～10.5V | 0V ～ 21.0V | 0V ～21.0V | 0V ～ 37.8V | 0V～37.8V | 0V～ 105.0V | ||
| 設定分辨率 | 0.2mV | 0.5mV | 0.5mV | 1mV | 1mV | 2mV | ||
| 設定準確度 (23℃±5℃) | ±(0.03% of setting + 3mV) | ±(0.03% of setting + 5mV) | ±(0.03% of setting + 5mV) | ±(0.03% of setting + 8mV) | ±(0.03% of setting + 8mV) | ±(0.03% of setting + 20mV) | ||
| 線路補償電壓 (single line) | 1V | 3V | ||||||
| 溫度系數 (TYP.) | 100 ppm/℃ | |||||||
| 定電流操作 | ||||||||
| 電源調節率 | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 100uA) | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 50uA) | ±(0.02% of setting + 150uA) | ±(0.02% of setting + 50uA) | ||
| 負載調節率 | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 100uA) | ±(0.02% of setting + 250uA) | ±(0.02% of setting + 50uA) | ±(0.02% of setting + 150uA) | ±(0.02% of setting + 50uA) | ||
| 紋波&噪聲 | (Arms*2) | 2mA | 1mA | 2mA | 400uA | 1mA | 1mA | |
| 設定范圍 (105%) | 0A ～ 5.25A | 0A～ 2.1A | 0A～ 5.25A | 0A ～ 1.050A | 0A～ 3.15A | 0A～ 1.050A | ||
| 設定分辨率 | 0.1mA | 0.05mA | 0.1mA | 0.02mA | 0.1mA | 0.02mA | ||
| 設定準確度 (23℃±5℃) | ±(0.05% of setting + 3.0mA) | ±(0.05% of setting + 1.0mA) | ±(0.05% of setting + 3.0mA) | ±(0.05% of setting + 0.5mA) | ±(0.05% of setting + 1.5mA) | ±(0.05% of setting + 1.0mA) | ||
| 溫度系數 (TYP.) | 200 ppm/℃ | |||||||
| 測量與顯示 | ||||||||
| 電壓檔位 | H | 10.000V | 20.000V | 20.000V | 36.000V | 36.000V | 100.00V | |
| L | 1.0000V | 2.0000V | 2.0000V | 3.6000V | 3.6000V | 10.000V | ||
| 電流檔位 | H | 5.0000A | 2.0000A | 5.0000A | 1.0000A | 3.0000A | 1.0000A | |
| M | 500.00mA | 200.00mA | 500.00mA | 100.00mA | 300.00mA | 100.00mA | ||
| L | 50.000mA | 20.000mA | 50.000mA | 10.000mA | 30.000mA | 10.000mA | ||
| LL | 5.0000mA | 2.0000mA | 5.0000mA | 1.0000mA | 3.0000mA | 1.0000mA | ||
| 測量分辨率 | 電壓(H) | 1mV | 10mV | |||||
| 電壓(L) | 0.1mV | 1mV | ||||||
| 電流(H) | 0.1mA | 0.1mA | ||||||
| 電流(M) | 0.01mA | 0.01mA | ||||||
| 電流(L) | 0.001mA | 0.001mA | ||||||
| 電流(LL) | 0.0001mA | 0.0001mA | ||||||
| 測量準確度 | 電壓(H/L) | ±(0.03% of rdg +2mV) | ±(0.03% of rdg +4mV) | ±(0.03% of rdg + 5mV) | ±(0.03% of rdg + 6mV) | ±(0.03% of rdg + 8mV) | ±(0.03% of rdg + 15mV) | |
| 溫度系數*6 (TYP.) | 100 ppm/℃ | |||||||
| 電流(H/M) | ±(0.05% of rdg + 2.5mA) | ±(0.05% of rdg + 1.0mA) | ±(0.05% of rdg + 2.5mA) | ±(0.05% of rdg + 0.4mA) | ±(0.05% of rdg + 1.2mA) | ±(0.05% of rdg + 1.0mA) | ||
| 電流(L/LL) | ±(0.1% of rdg + 40uA) | ±(0.1% of rdg + 24uA) | ±(0.1% of rdg + 40uA) | ±(0.1% of rdg + 16uA) | ±(0.1% of rdg + 28uA) | ±(0.1% of rdg + 24uA) | ||
| 溫度系數*6 (TYP.) | 200 ppm/℃ | |||||||
| 溫度測量 | ||||||||
| 溫度范圍 (K-Type 熱電偶) | 范圍 | -200℃~+1372℃ | ||||||
| 分辨率 | 0.25℃ | |||||||
| 準確度 | ±(0.5% + 2℃) | |||||||
| 保護功能 | ||||||||
| 過電壓保護(OVP) | 運作 | Turns the output off, disys OVP and lights ALARM | ||||||
| 設定范圍 | 0.5V ～ 11.0V | 1.0V ～22.0V | 1.0V ～ 22.0V | 1.8V ～ 39.6V | 1.8V～ 39.6V | 5.0V～ 110.0V | ||
| (5% to 110% of the rated output voltage) | ||||||||
| 設定準確度 | ±(1% of rating) | |||||||
| 過電流保護(OCP) | 運作 | Turns the output off, disys OCP and lights ALARM | ||||||
| 設定范圍 | 0.25A ～ 5.5A | 0.1A ～ 2.2A | 0.25A～5.5A | 0.05A ～ 1.1A | 0.15A～ 3.3A | 0.05A～ 1.1A | ||
| (5% to 110% of the rated output current) | ||||||||
| 設定準確度 | ±(1% of rating) | |||||||
| 過溫度保護(OTP) | 運作 | Turns the output off, disys OTP and lights ALARM | ||||||
| 其它 | ||||||||
| 通信接口 | LAN | MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask | ||||||
| USB | Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC | |||||||
| RS-232/RS-485 | Complies with the EIA-RS-232/RS-485 specifications (excluding the connector) | |||||||
| 輸入電壓范圍*7 | 100Vac / 120Vac / 220Vac / 240Vac(±10%), 50Hz / 60Hz, single phase | |||||||
| 輸入頻率范圍 | 47Hz ～ 63Hz | |||||||
| 輸入峰值電流 | 25Amax or less | 20Amax or less | 30Amax or less | 35Amax or less | 40Amax or less | 30Amax or less | ||
| 視在功率 | 200VA | 150VA | 300VA | 150VA | 300VA | 300VA | ||
| 操作溫度 | 0?C ～40?C | |||||||
| 儲存溫度 | -20?C to 70?C | |||||||
| 操作濕度 | 20% to 80% RH; No condensation | |||||||
| 儲存濕度 | 20% to 85% RH; No condensation | |||||||
| 尺寸 (mm) & 重量 | 107(W)×124(H)×313(D) (not including protrusions)，Approx. 5.5kg | |||||||
| *1. 負載從額定輸出電流的50%變?yōu)闀r，輸出電壓恢復到額定輸出±（0.1%+10mV）范圍內的時間。 | ||||||||
| *2. 測量頻率帶寬為5 Hz至1 MHz。 | ||||||||
| *3. 測量頻率帶寬為10 Hz至20 MHz。 | ||||||||
| *4. 額定輸出電壓的10%~90%，帶額定電阻負載。 | ||||||||
| *5. 額定輸出電壓的90%~10%，帶額定電阻負載。 | ||||||||
| *6. 溫度系數：預熱30分鐘后?！?/td> | ||||||||
| *7. 在將電源插頭連接到交流電源插座之前，請確保底部面板的電壓選擇開關處于正確位置。 連接到錯誤的交流線路電壓可能會損壞儀表。 | ||||||||
