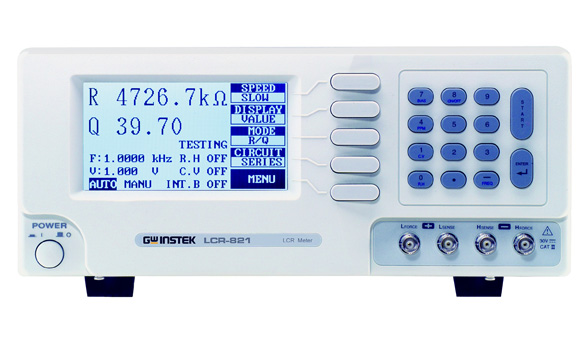

LCR-800數字LCR儀表產品詳細規格
Test Frequency:
12Hz~200kHz (LCR-821)
12Hz~100kHz (LCR-819/829)
12Hz~10kHz (LCR-817/827)
100Hz~2kHz (LCR-816/826)
0.05%~0.1% Basic Accuracy
100 Sets Memory for Save/Recall of Settings
R/Q, C/D, C/R, L/Q, Z/θ, L/R Test Modes
Absolute Value,ΔValue, and Δ% Measurement Disy
240 x 128 dot Matrix LCD Disy
Disys Condition and Test Result Simultaneously
Standard Interface: RS-232C (LCR-821)/ Handler (LCR-829/827/826)
Optional Interface: RS-232C (LCR-819/817/816)
| 規格 | |
| 測試頻率 | |
| 12Hz ~ 200kHz (504 steps) for LCR-821;12Hz ~ 100kHz(503 steps) for LCR-819/829;12Hz ~ 10kHz(489 steps) for LCR-817/827;100Hz ~2kHz (245 steps) for LCR-816/826 | |
| 基本精度 (*) | |
| 0.05% for basic accuracy for LCR-821/819/817;0.1% for basic accuracy for LCR-829/827/826/816 | |
| 測試速度 | |
| 68ms for LCR-821/819/817/816, 34ms for LCR-829/827/826 | |
| 測試信號水平 | |
| 5mV ~ 1.275Vrms ( 5mV/step ) for LCR-821/819/829/817/827;0.1V ~ 1.275Vrms ( 5mV/step )for LCR-816/826 | |
| DC BIAS | |
| 內部 | 2V |
| 外部 | 0 ~ 35V for LCR-821; 0 ~ 30V for LCR-819/829/817/827/816/826 |
| 顯示范圍(**) | |
| 電阻 | R 0.00001Ω ~ 99999kΩ |
| 電容 | C 0.00001pF ~ 99999uF |
| 電感 | L 0.00001mH ~ 99999H |
| 品質因數 | Q 0.0001 ~ 9999 |
| 耗散因數 | D 0.0001 ~ 9999 |
| 阻抗 | |Z| 0.00001Ω ~ 99999kΩ for LCR-821 |
| 相角 (度) | θ -180.00° ~ 180.00° for LCR-821 |
| 測試模式 | |
| R/Q, C/D, C/R, L/Q, Z/θ, L/R for LCR-821 only | |
| 等效電路 | |
| 并聯或串聯選擇 | |
| 存儲 | |
| 100 memory blocks total | |
| 平均 | |
| 1～255 times | |
| 測試速度模式 | |
| 低,中和高 | |
| 顯示模式 | |
| Value, △, △% | |
| 顯示 | |
| 240 x 128 點矩陣 C.C.F.L背光 LCD | |
| 接口 | |
| 標配 : RS-232C for LCR-821;標配 : Handler Interface for LCR-829/827/826;選配 : RS-232C Interface for LCR-819/817/816(包括用于RS-232C接口的LCR-Viewer軟件) | |
| 電源 | |
| 線性電壓范圍 | 100V - 240V, 47-63Hz/400Hz |
| 尺寸 & 重量 | |
| 330(W) x 149(H) x 437(D)mm;約. 5.5kg | |
| (*)：基本精度隨著被測設備的速度，頻率，交流信號電平和阻抗而變化。 | |
| (**)：顯示范圍是指可以在屏幕上顯示的測量值范圍。 有關測量范圍，請參閱LCR-800用戶手冊。 | |
